Product description

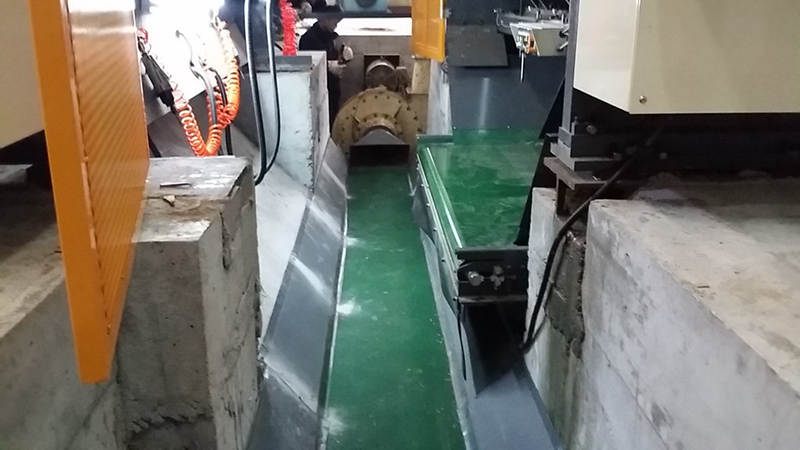

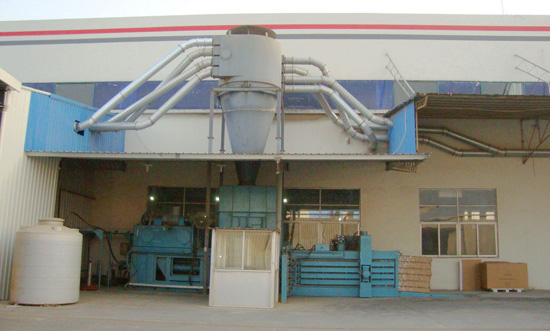

Our company specializes in the field measurement, planning and design of the whole plant waste paper treatment system scheme, and equipment manufacturing and installation for the carton packaging industry. The two paper edges trimmed by the longitudinal cutting machine of corrugated board line and single tile line are sucked into the shredder fan through the hose at the air suction outlet. After cutting, they are transported by the air pipe to the cyclone paper-gas separator and fall into the packer. The waste generated by the printing slotting machine and the flat pressing die-cutting machine falls into the belt conveyor in the trench, and then is transported to the feed hopper of the shredder fan. After being cut off by the shredder fan, it is transported by the air pipe to the cyclone paper-gas separator and then falls into the packer. After the waste manually cleaned by the semi-automatic flat pressing die-cutting machine is stacked to a certain amount of waste paper, it is fed manually to the suction inlet of the shredder fan in a short time, and then cut off, transported by the air duct to the cyclone paper-gas separator and then dropped into the packer. The scrapped cardboard or carton is broken by the cardboard crusher, cut by the shredding fan, transported by the air duct to the cyclone paper-gas separator and then falls into the packer. The waste paper of the whole plant is separated by the cyclone paper-gas separator and then falls into the packer for packaging. After the dust containing gas is atomized by the water spray device in the separator, it flows into the packer along the wall due to the absorption of inertia and waste collision, and the purified air flow rotates inward and then discharged out of the cylinder. The whole system is an automatic operating system, It is an ideal waste paper collection and treatment system equipment with high quality and efficiency in carton packaging industry.

Yxfc. B paper shredder fan for mechanical tile line of carton type A (motor drive)

model	Diameter of air inlet mm	Diameter of air outlet mm	power kw	wind pressure pa	Air volume m³/h	speed r/min
YXFC.B-7.5A	2-Ø150	Ø200	7.5	2708-3350	2178-4145	2900
YXFC.B-11A	2-Ø150	Ø250	11	2820-3700	2620-4985	2900
YXFC.B-15A	2-Ø150	Ø250	15	3178-4166	3130-5956	2900
YXFC.B-18.5A	2-Ø150	Ø250	18.5	3365-4410	3415-6485	2900
YXFC.B-22A	2-Ø150	Ø300	22	3685-4830	3915-7440	2900
YXFC.B-30A	2-Ø150	Ø300	30	4095-5365	4578-8705	2900

Type selection is mainly based on technical parameters such as corrugated paperboard linear speed, paperboard weight, conveying distance, etc.

Yxfc. B paper shredder fan for carton mechanical printing slotting machine and flat pressing die cutting machine type C (belt drive)

model	Diameter of air inlet mm	Diameter of air outlet mm	power kw	wind pressure pa	Air volume m³/h	speed r/min
YXFC.B-22C	Ø300	Ø300	22	2894-3792	5190-9860	2100
YXFC.B-30C	Ø300	Ø300	30	3470-4548	5685-10800	2300
YXFC.B-37C	Ø350	Ø350	37	3939-5160	6054-11503	2500
YXFC.B-45C	Ø350	Ø350	45	4089-5357	6856-13035	1900

Type selection is mainly based on the number of printing slotting machines, die-cutting machines, waste paper volume, conveying distance and other technical parameters to determine the fan model.

Installation drawing of trimming waste paper treatment of longitudinal cutting machine of corrugated board production line
